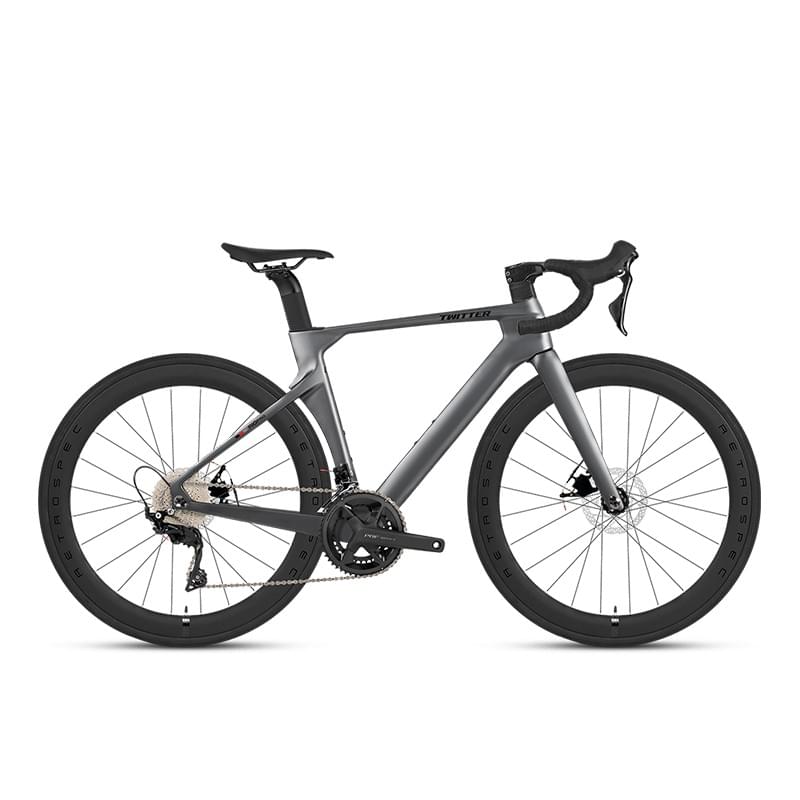

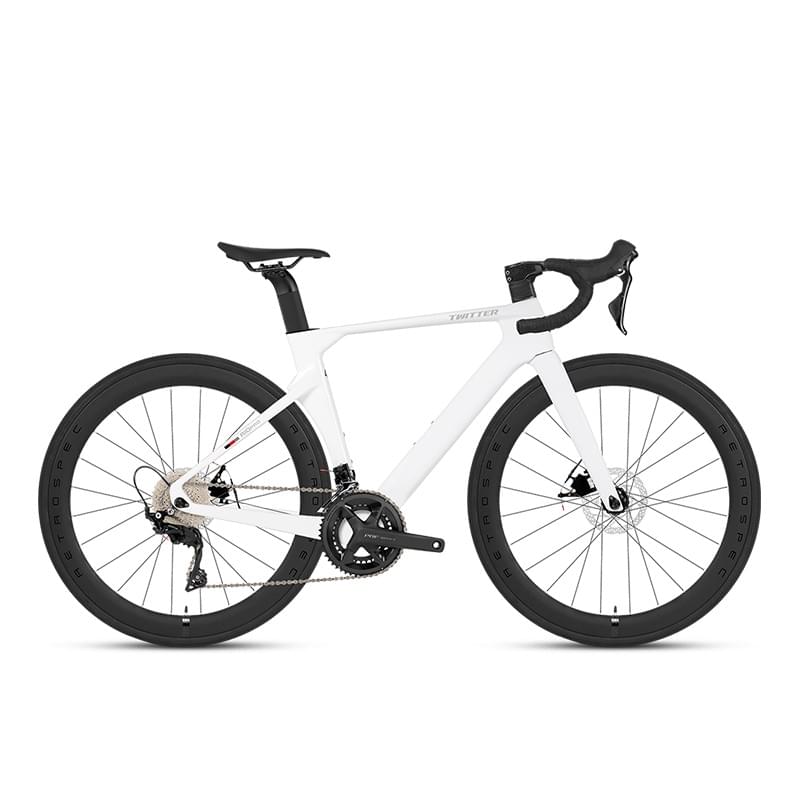

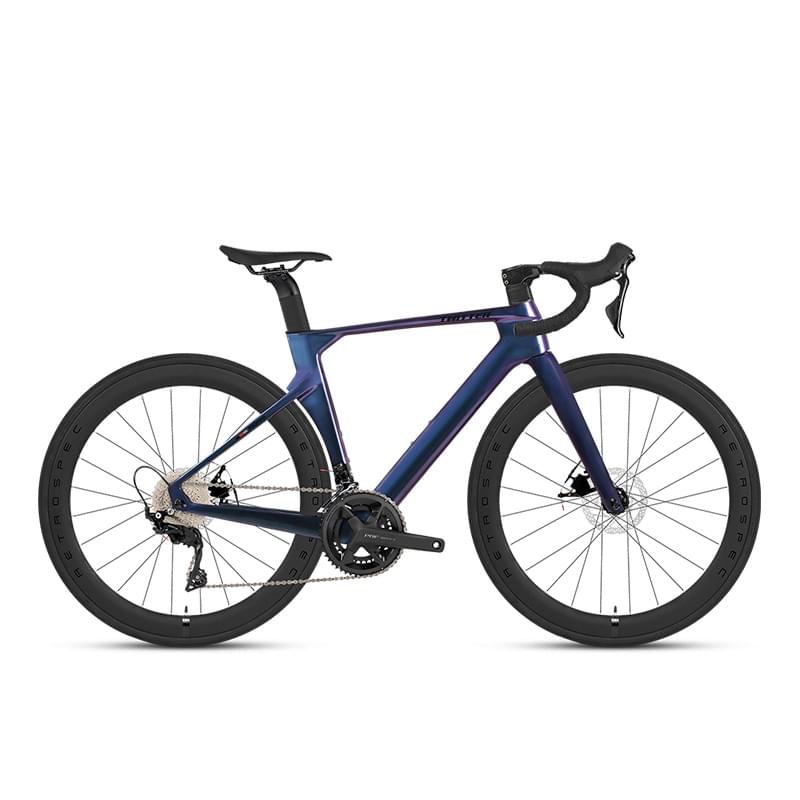

R10pro - Disc Brakes（Carbon wheels）
Model: R10pro (Disc Brake)
Configuration: R7120 24-speed groupset, aluminum wheels, carbon handlebar
Wheel Size: 700C
Frame Sizes: 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm
Colors: White / Matte Black / Matte Dark Gray / Custom; Color-shifting / 3K Gloss Black / 3K Gloss Dark Green / 3D Iridescent
Net Weight: 8.7kg
Frame: R10pro (Disc brake, 12x142mm thru-axle); High-modulus carbon fiber; Aero-racing geometry; Internal cable routing
Cockpit: TW High-modulus carbon fiber; Aero integrated handlebar & stem (400x90mm); Fully internal cable routing
Seatpost: Frame-matched; High-modulus carbon fiber; Aero teardrop profile
Seat Clamp: Frame-matched; Hidden locking mechanism with protective rubber cover
Fork: R10pro (Disc brake, 12x100mm thru-axle); High-modulus carbon fiber; Rigid road fork (700C)
Headset: CNC Aluminum Alloy with sealed bearings (52x52mm)
Spacers: Internal routing specific
Drivetrain: Shifters: SHIMANO 105/R7120 2x12-speed Hydraulic Disc
Front Derailleur: SHIMANO 105/R7100 2-speed
Rear Derailleur: SHIMANO 105/R7100 12-speed
Crankset: SENICX PR6 Aluminum Alloy Hollow-tech (34-50T)
Cassette: SUNSHINE 12-speed (11-34T)
Chain: SUMC 12-speed
Bottom Bracket: Threaded T47x24mm, Hollow-tech sealed bearings
Brakes: SHIMANO 105/R7070 Hydraulic Disc Brakes (160/160mm rotors)
Wheelset: Hubs: RS Lightweight aluminum alloy / 4-bearing cassette hub / 24H front & rear /
Disc brake, thru-axle (F12x100 / R12x142)
Rims: RS lightweight aluminum alloy / double-wall reinforced / 38mm profile depth
Spokes: High-rigidity 14G round spokes
Tires: RS foldable, with reflective sidewalls, 700x28C
Bar tape: Breathable, comfortable, and anti-slip PU
Saddle: Lightweight, comfortable racing style
Pedals: Lightweight, anti-slip
Cable housing: JAGWIRE
